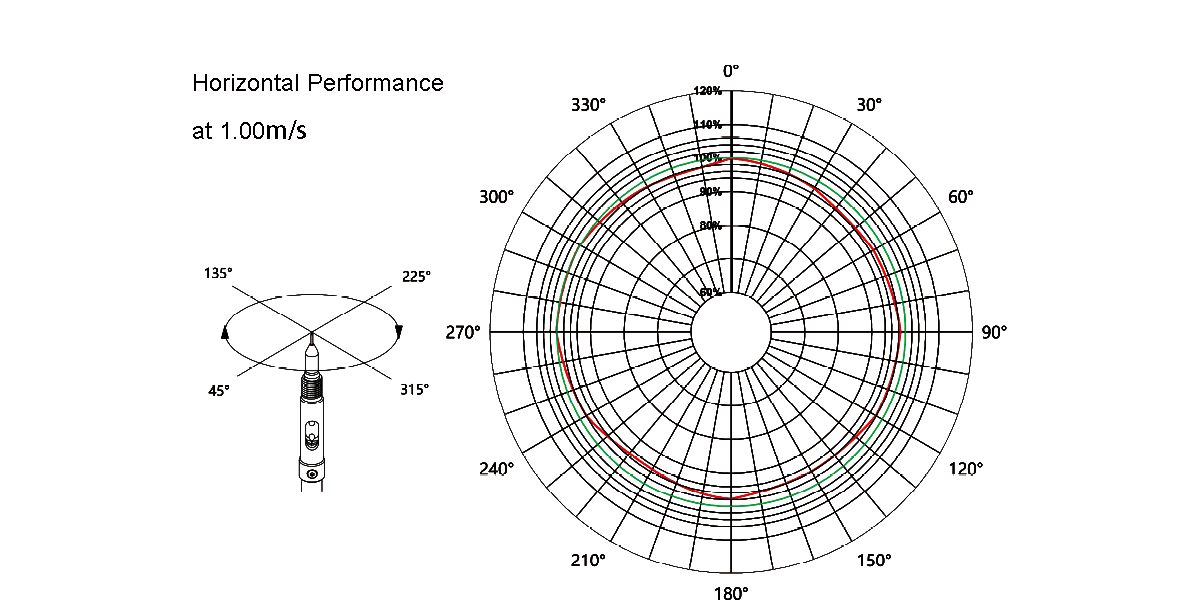

Omnidirectional test: 360° has good consistency.
High sensitivity: can identify the dynamic change of wind speed of 0.01m/s

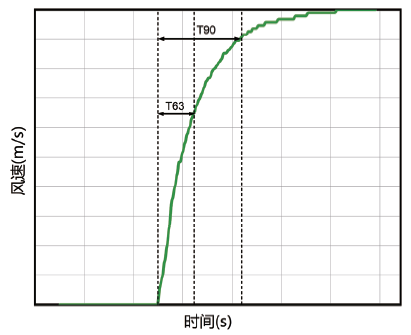

High response: the response speed can reach 0.2s (t63) High precision
: can pass the test of the national metrology institution
Standard output: standard Modbus RS485 communication
Compact structure: sensor and acquisition circuit integration All in one, compact and flexible
JT1401 has a very high response speed and can detect weakly changing airflow. This feature makes this wind speed sensor suitable for wind speed measurement in precision-processed production lines, wind tunnel calibration, tobacco processing, tea processing and storage, aerospace, agriculture, etc. The field of airflow research and control.
Structural size:

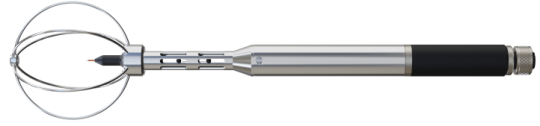

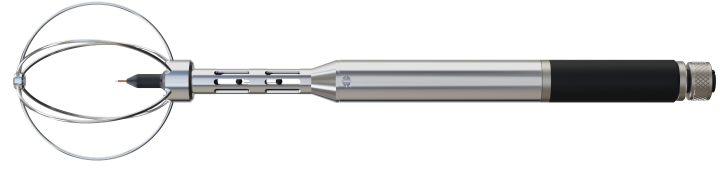

detachable protective ball cage and protective cover: anti-mis-touch protective cover, transport protective cover, effectively protect precision parts
Application scenario:
secondary instrument development: (DC5V M12 standard six-pin aviation plug)
supporting sensors for handheld anemometers,
HVAC, indoor environment measuring instruments, supporting
wind speed transmitter probes

to build wind speed measurement systems: connect multi-channel RS485 data acquisition instruments to build The wind speed measurement system
can connect multiple wind speed sensors to the RS485 data acquisition instrument through the bracket to build a multi-channel wind speed measurement system for the measurement of indoor airflow organization, HVAC ventilation design, and can also be connected to PLC for indoor monitoring. Airflow is controlled.

Parameter name	Technical indicators	Illustrate
structure type	Integrated structure, omnidirectional test	?
Wind speed range	0-10m/s (0-20m/s can be customized)	?
Wind Speed ??Accuracy	0.05-2.0m/s ±(0.05 m/s+2% of reading) >2.0 ±(0.1 m/s±2% of reading)	?
Response time	0.2s	(t?63?, 1m/s wind speed, 25°C, tested under standard atmospheric pressure)
Wind temperature range	-10-60°C	?
Wind temperature accuracy	±1°C（＜1m/s）； ±0.5°C（＞1m/s）	?
test module output signal	RS485 standard MODBUS protocol	?
supply voltage	DC5V-9V	?
use environment	Probe -25—80°C; 0—90%RH	non-condensing state
Temperature compensation	0—80°C	?
Interface form	Standard M12X1 six-core aviation connector	?
Structural material	Stainless steel + polymer material	?
degree of protection	IP54	?
storage temperature	-30—80°C	?
Accessories	Protective Ball Cage	Standard
	protective hat	Standard
	?	Cable length can be customized, see selection method
